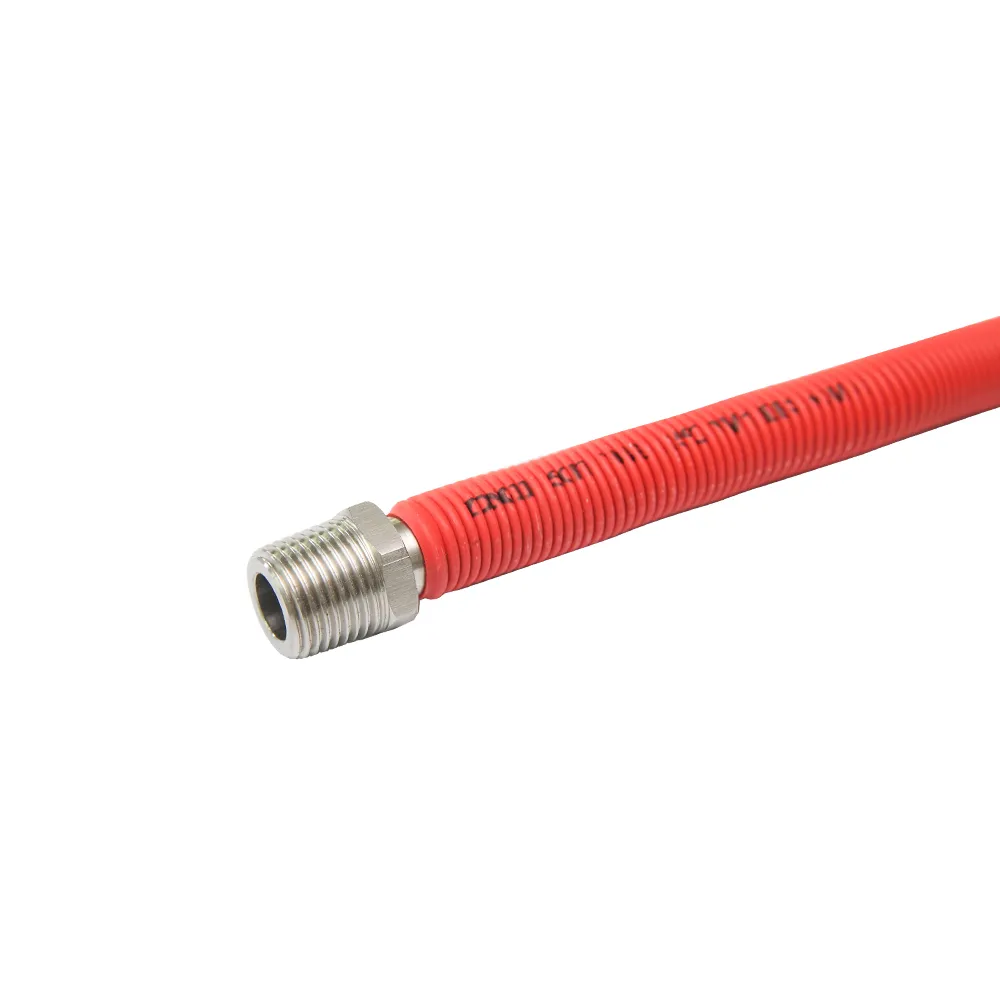

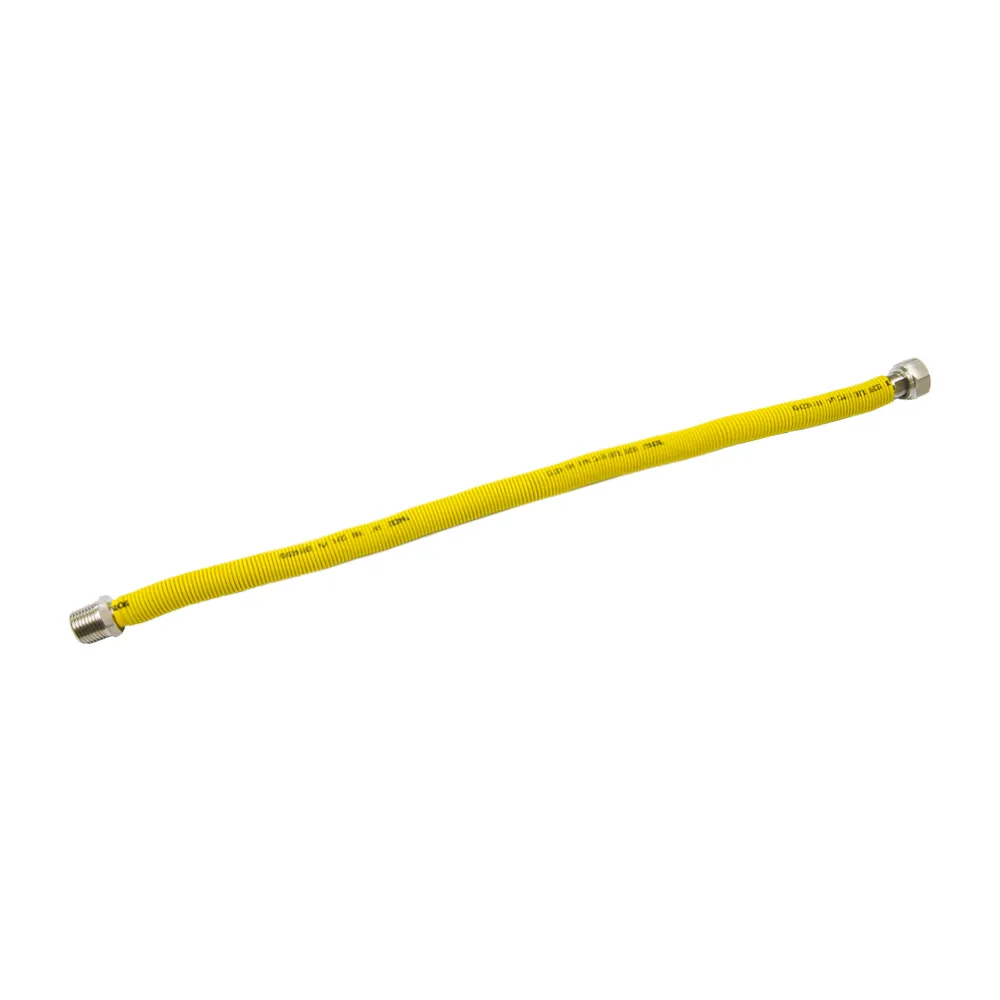

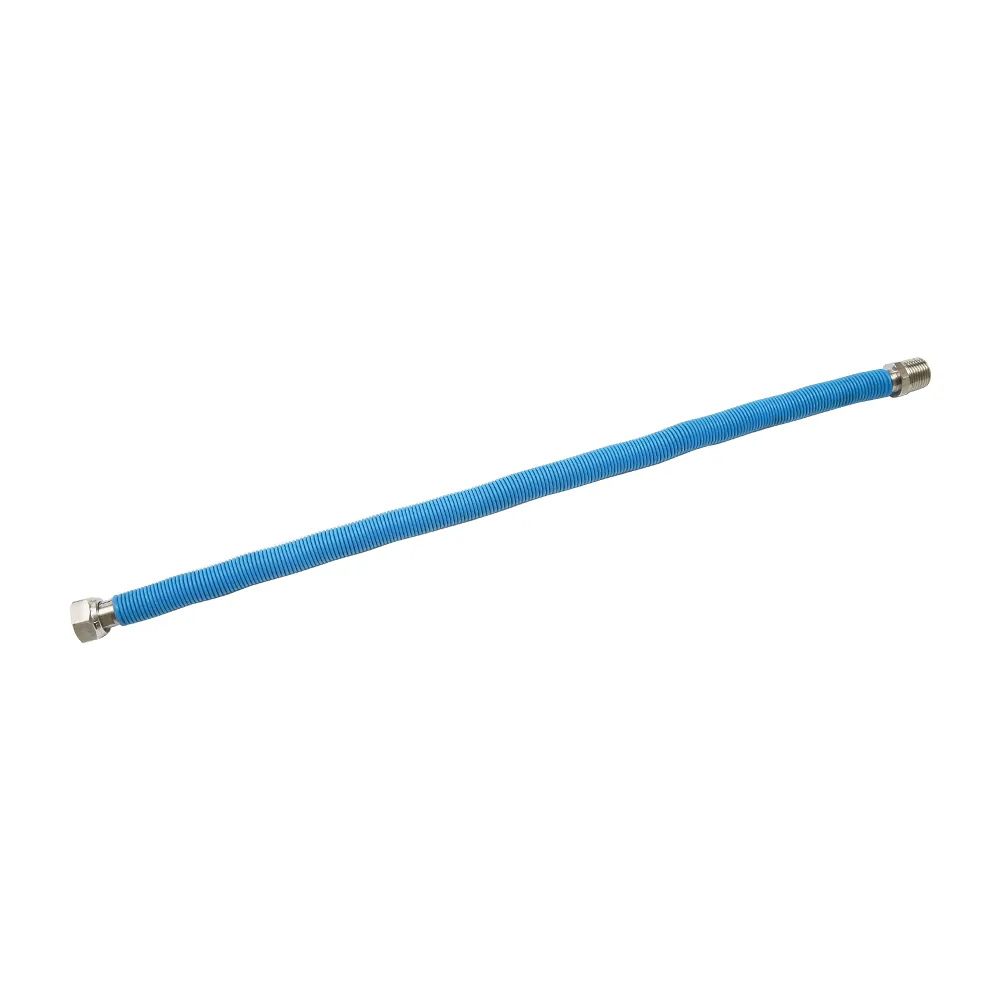

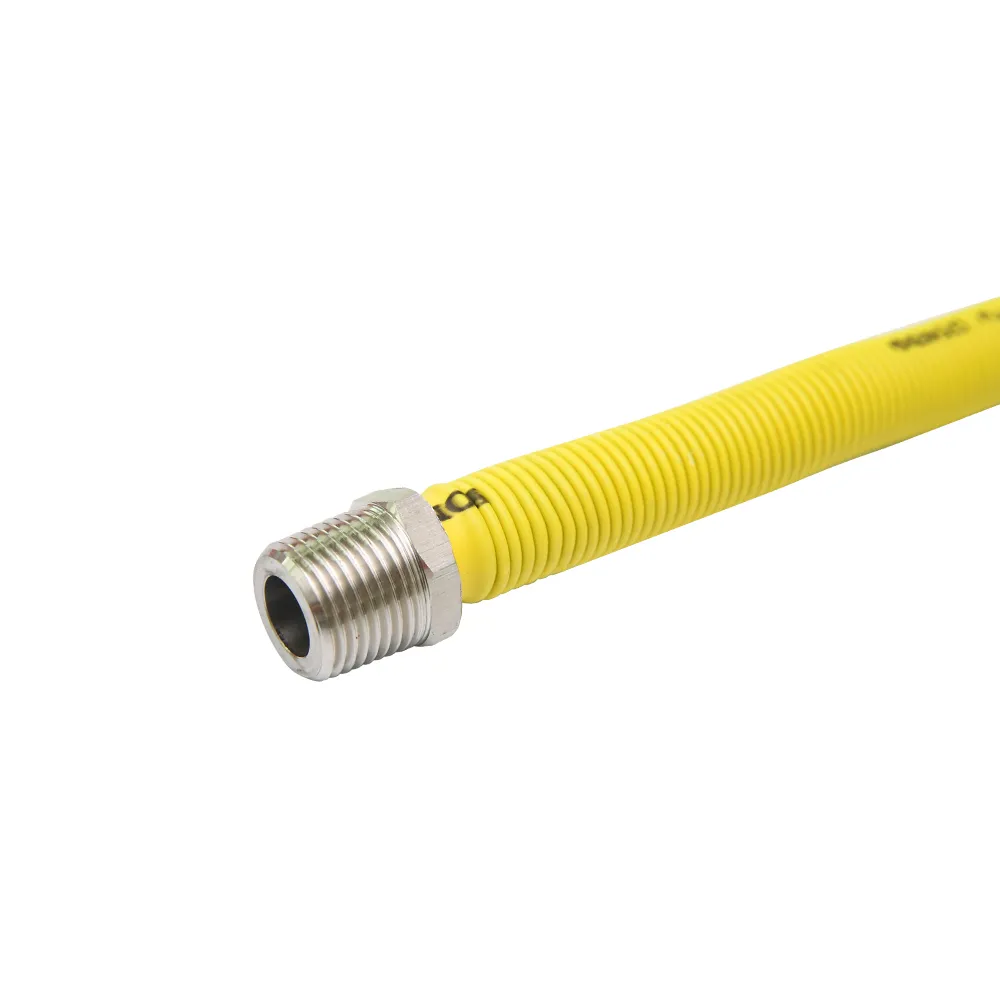

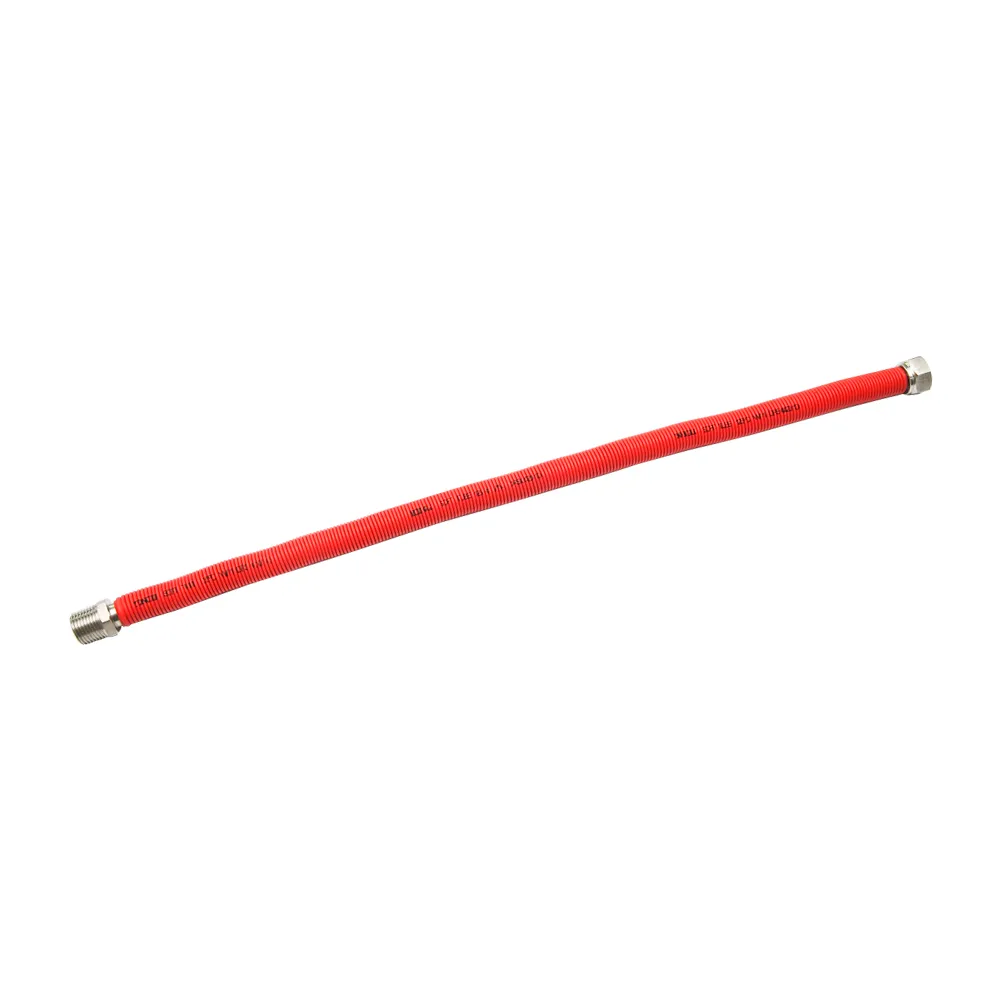

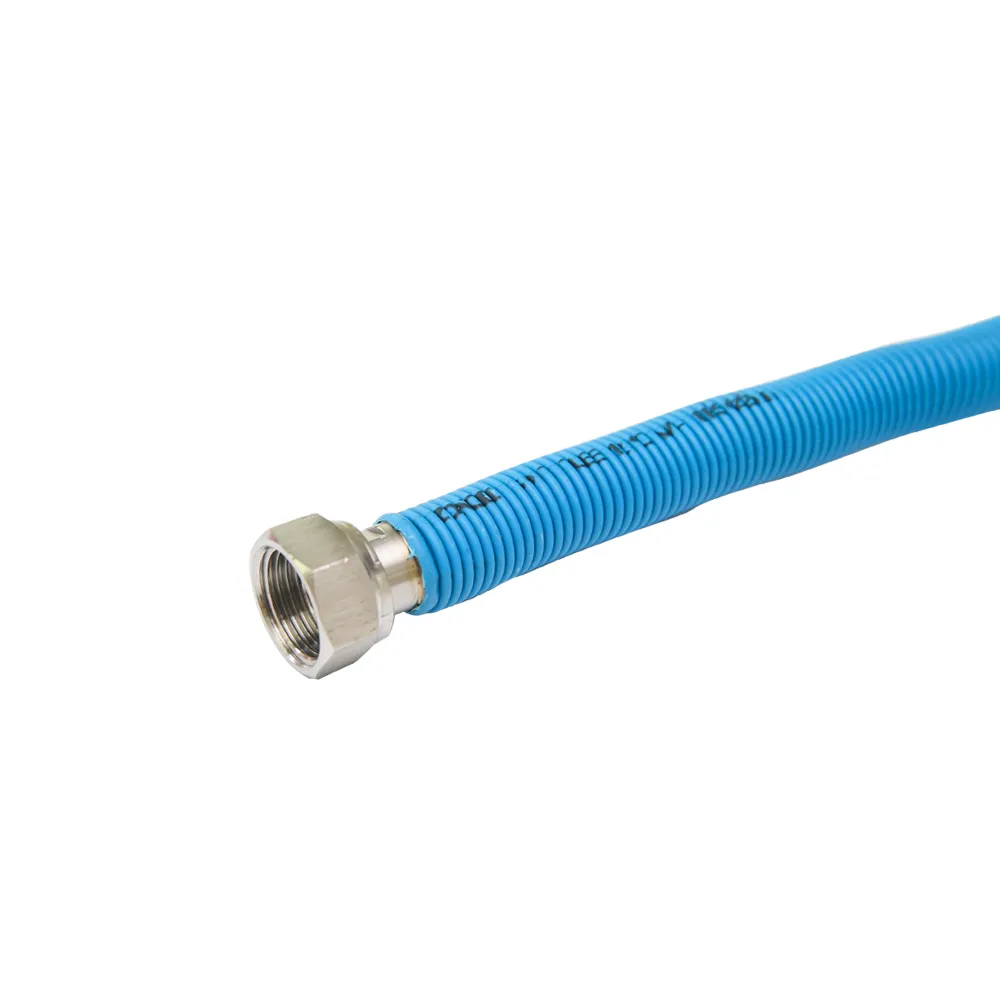

UNI11353 extensible hose
HONGWU extensible hoses are a new type of multifunctional conveying pipe for gas and water, manufactured in accordance with UNI11353
Contact us
Previous：Flexible water hoses
EXTENSIBLE HOSES
| Technical-regulatory specifications | |
| Pipe | stainless steel 304/316L |
| Male fitting | stainless steel 304/316L |
| Fitting for swivel nut | stainless steel 304/316L with flat sealing seat |
| Nut | stainless steel 304/316L(thread ) or brass |
| Protective Sheathing | PE Protective Sheathing |
| Treatment | annealing heat treatment |
| Thread | 1/2"x1/2", 3/4"x3/4", 1"x1" |
| Application | Conveying gas and water |
| Dimensional Characteristics | |||
| Tube DN | Length From(mm) | Length to(mm) | |
| 15 | 300 | 600 | Customization acceptable |
| 500 | 1000 | ||
| 20 | 300 | 600 | |
| 500 | 1000 | ||
| 25 | 300 | 600 | |
| 500 | 1000 | ||
